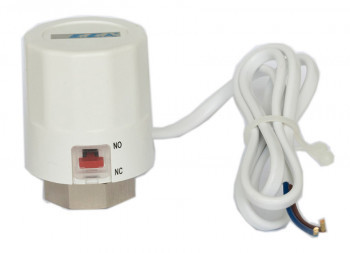

ELECTRICAL M30x1.5 ACTUATOR

Product Detail

ACTUATOR M30x1.5
• Supply voltage 220 V • Max. starting current 150 mA • Frequency 50-60 Hz • Power consumption 2.5 W • Spindle travel time 4.5 min. • Ambient temperature (-10) - (+60) ° C • Stroke 2.5 mm (minimum after 5 years) • Actuating force NC: 100 NNC: 140 N • Closing size 15.1 +/- 0.25 mm • CE certificate • Degree of protection IP 44 • Cable length 750 mm

General Features

code of product	a type	Dimensions (edit)	Number of boxes
602120742	230	M30x1,5	10

Technicial Specifications

Supply voltage 220 V
Maximum. starting current 150 mA
Frequency 50-60 Hz
Operating power consumption 2.5 W
Spindle travel time 4.5 min.
Ambient temperature (-10) - (+60) ° C
2.5mm stroke (after 5 years minimum)
Actuation force NC: 100 NNC: 140 N
Closing size 15.1 +/- 0.25mm
CE certificate Degree of protection IP 44
Cable length 750 mm
